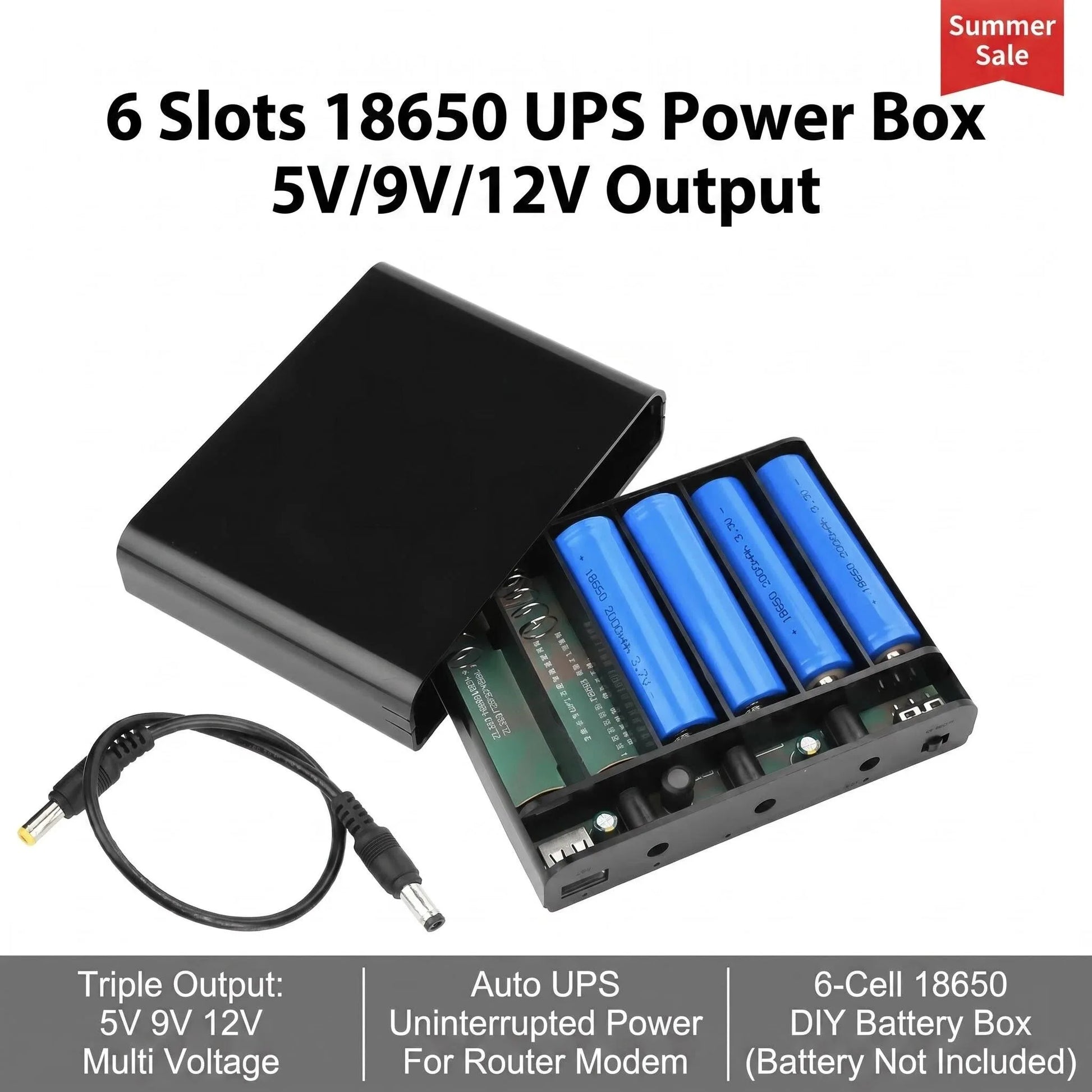

DC UPS 5V 9V 12V Output 6x 18650 Battery Uninterrupted Power Supply DIY Power Bank Box for House Router Cellphone Tablet Modem

Name: DC UPS 5V 9V 12V Output 6x 18650 Battery Uninterrupted Power Supply DIY Power Bank Box for House Router Cellphone Tablet Modem
Brand: Phones Icon
Price: 83.28 USD
Availability: InStock

★ ★ ★ ★ ★

$83.28

$83.28 ~~$90.22~~

7% OFF Sold out

Default Title Default Title

Product variants

Quantity

DC UPS 5V 9V 12V Output 6x 18650 Battery Uninterrupted Power Supply DIY Power Bank Box for House Router Cellphone Tablet Modem

$83.28

$83.28 ~~$90.22~~

7% OFF Sold out

Get it between - and -.

I’ve been reaching for this almost every time I do my makeup. It’s simple, looks good, and doesn’t cause any issues with my skin.

Sofia Martinez

★★★★★

I didn’t expect much at first, but this ended up being really good. It’s easy to work with and makes my makeup look more put together.

Lisa Andrews

★★★★★

Bought My Way by Giorgio Armani for my sister’s birthday and she absolutely loved it! Delivery was fast, the perfume was sealed, and everything smelled fresh and premium. Highly recommend.

Megan Walsh

★★★★★

1 2 3

SPECIFICATIONS

Application: Instrumentation

Battery Included: No

Battery Type: 18650 Li-ion Battery

Battery capacity: 6 * 3.7V * 3400mAh = 74Wh

Brand Name: Voktta

Certification: CE

Choice: yes

DC interface standard: DC 5.5 * 2.1mm (positive inside, negative outside)

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: DIY UPS Power Supply Box

Origin: Mainland China

Output Voltage: 5V 9V 12V

Overcharge protection: 4.25V * 3

Overcurrent detection voltage: 0.1V ± 0.025V

Protection: Overvoltage

Rated output power: 12V 5A = 60W

Temperature range: -20~60℃

Type: On-line

Undervoltage protection: 2.75V * 3

Weight: 160g

is_customized: Yes

semi_Choice: yes

type 1: ups for router

type 2: mini ups for router

type 3: uninterruptible power

type 4: door for router

type 5: uninterruptible power supply for router

type 6: wireless live for router

{Note: This product is an uninterruptible power supply box. Batteries are not included in the shipment. Users need to prepare their own batteries. Only 6x18650 lithium batteries are required to operate.}

DC UPS 5V 9V 12V Output 6x 18650 Battery Uninterrupted Power Supply DIY Power Bank Box for House Router Cellphone Tablet Modem

Features:

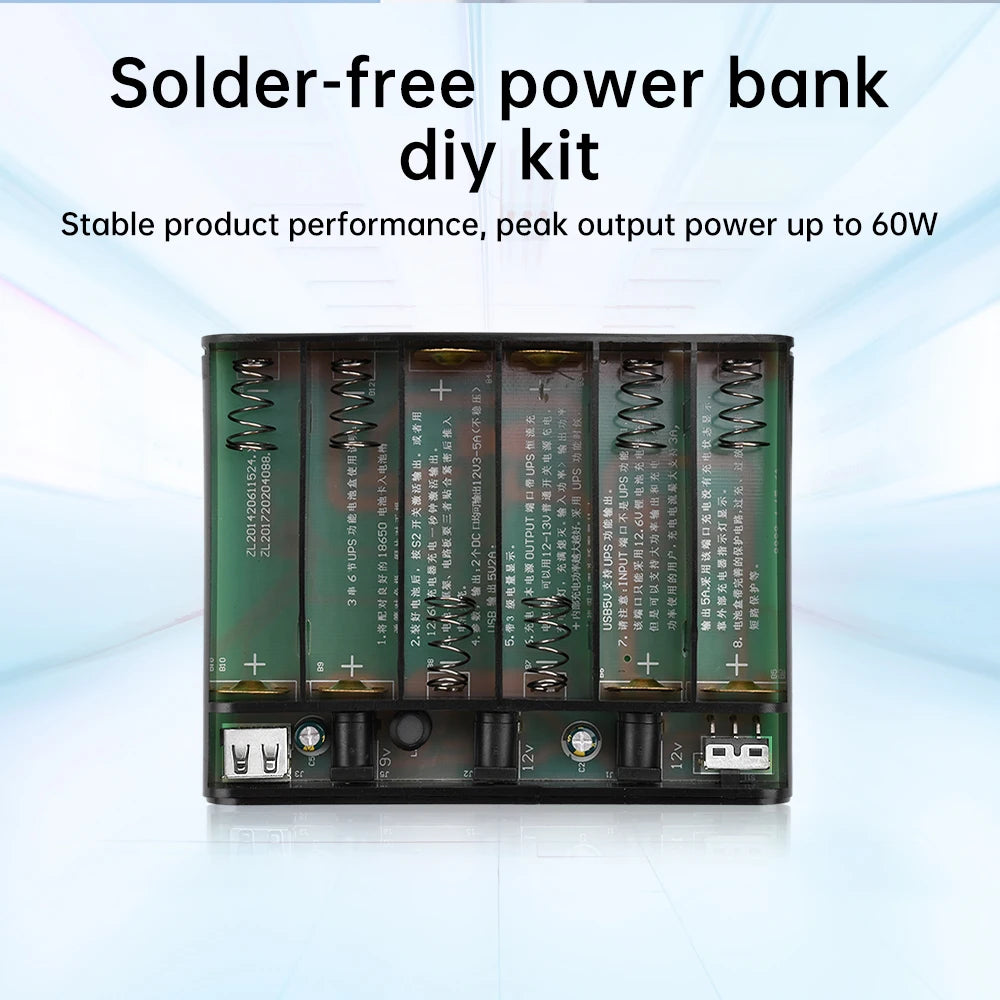

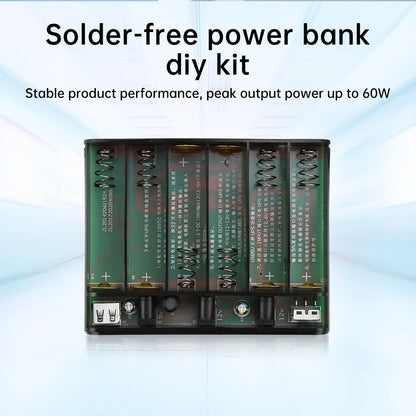

1. The product is free of welding and users can freely disassemble and replace the battery
2. Equipped with DC equal voltage UPS function, achieving automatic charge and discharge management without manual involvement

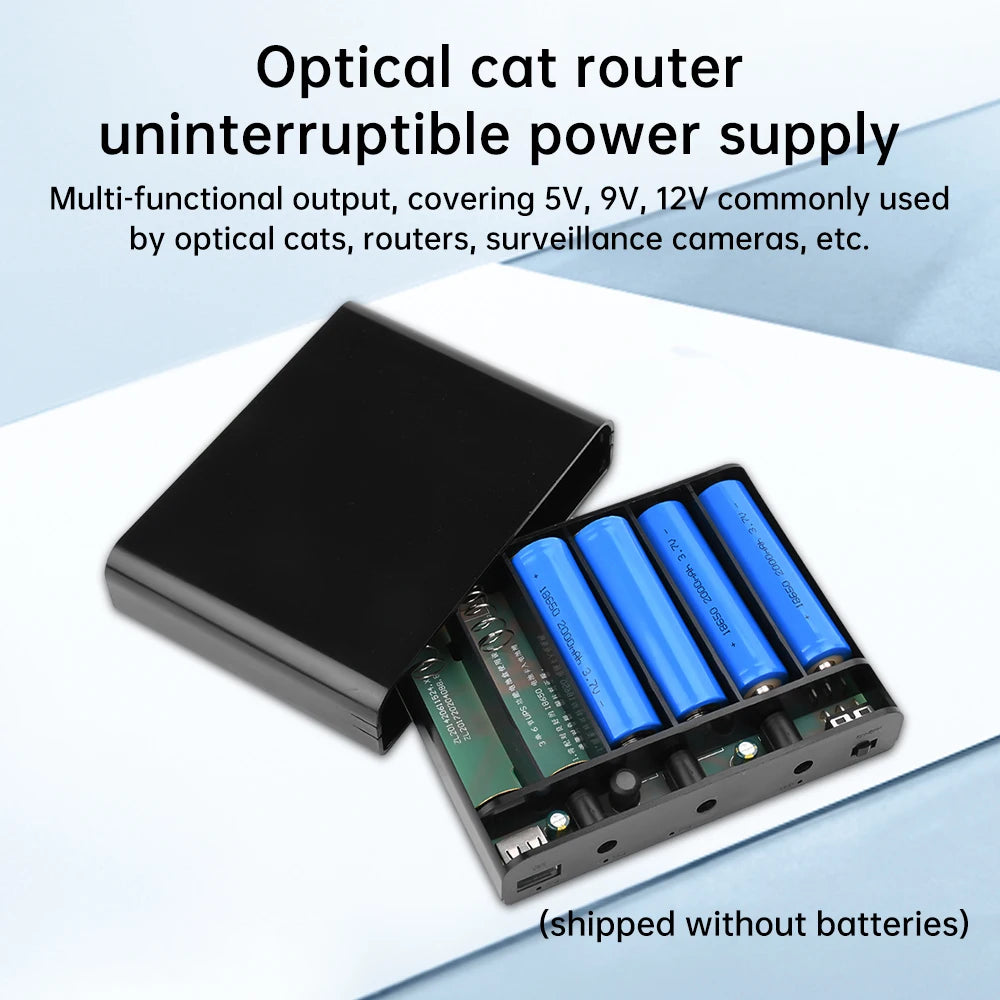

3. Multiple output functions, covering commonly used 5V, 9V, 12V voltages such as optical modem, router, surveillance camera, etc
4. Through strict quality control, ensure long-term stable operation and extend service life
5. The product has stable performance, with a peak output power of up to 60W

Specifications:
Battery capacity: 6 * 3.7V * 3400mAh=74 watt hours (battery to be provided by the user)
Rated output power: 12V5A=60W; The actual output power comes from the battery's own output power

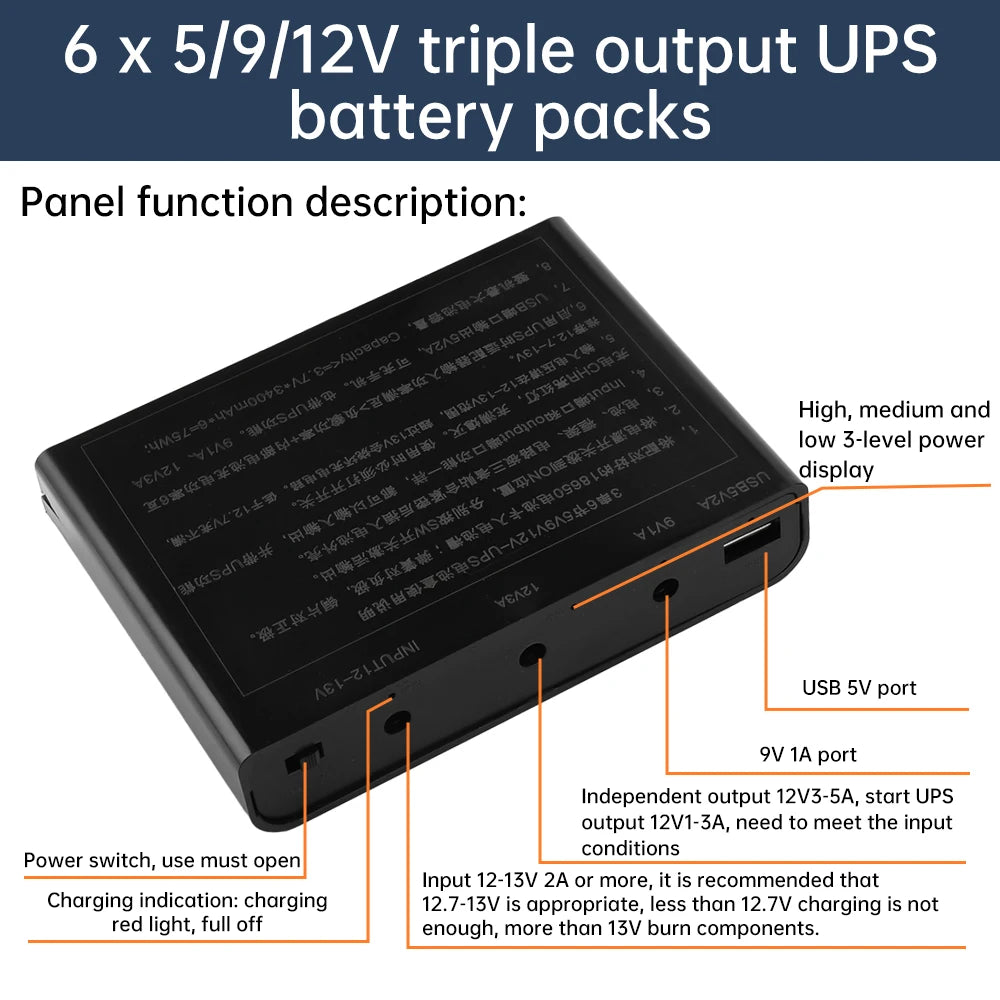

Output voltage: independent output 12V3-5A; 9V1A； USB5V2-3A； Enabling UPS functionality requires meeting input power conditions
The product does not stabilize voltage, and the battery is directly connected in series for output. The voltage increases or decreases with the amount of electricity
Suitable for high-power electrical appliances, motors, LED lights, speakers, solenoid valves, printers, etc. that do not require voltage stabilization
Applicable battery: 3.7V cylindrical flat head 18650 battery (recommended power battery)
Charger type: Internal charging current limiting circuit, can be charged with a 12-13V adapter. When using UPS, the larger the input power, the more stable it is
Charging power: Input adapter power meets>=total load power+6W battery charging power
Overcharge protection: 4.25V * 3
Low voltage protection: 2.75V * 3
Overcurrent detection voltage: 0.1V+-0.025V
Temperature range: -20~60 ℃
DC interface standard: DC 5.5 * 2.1mm (positive inside and negative outside)

Matters needing attention:

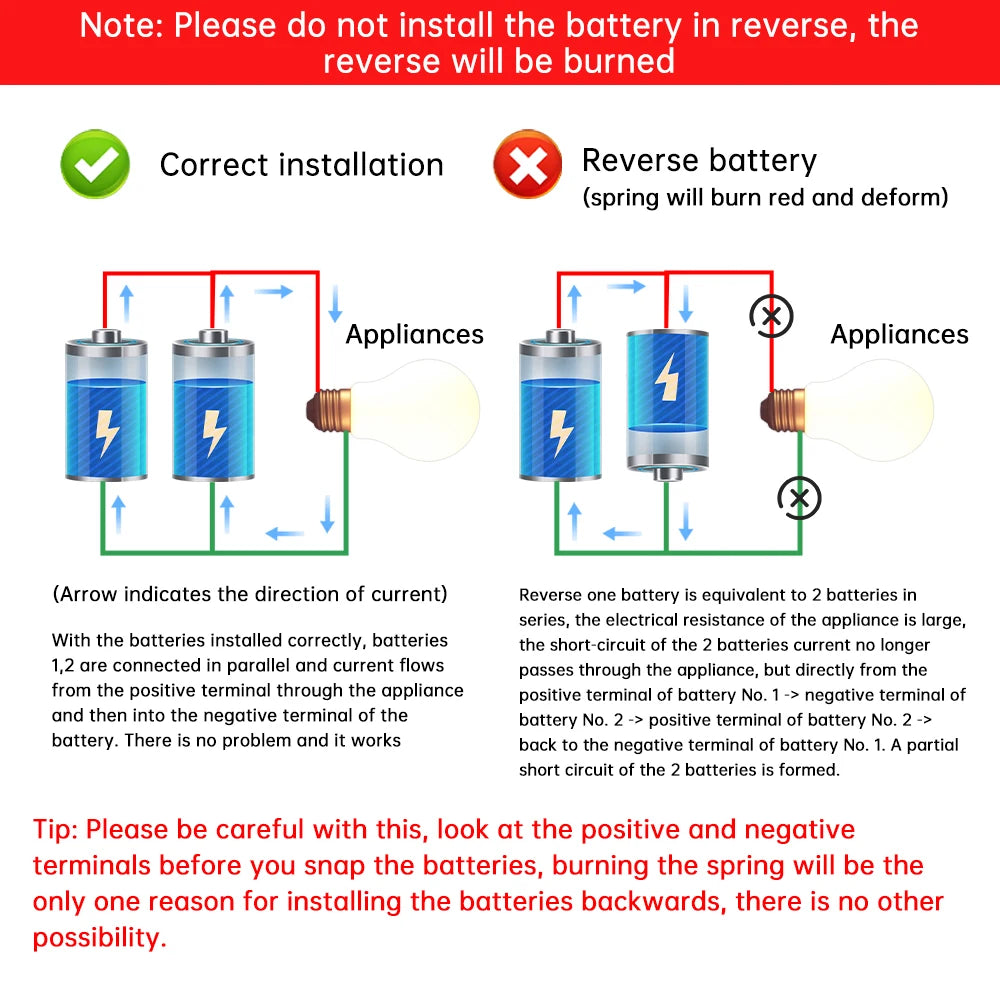

1. Spring to negative pole, copper sheet to positive pole. Do not install them in reverse, as they will burn!!!
2. Use high-quality batteries and require strict pairing. Each individual battery in the battery pack should have consistent parameters as much as possible
3. This product can only use flat 18650 batteries, and pointed batteries with a length of more than 2MM cannot be used

Package List:
Welding free battery box * 1 (Batteries not included in shipment !)
0.3 meters * 1
