SPECIFICATIONS

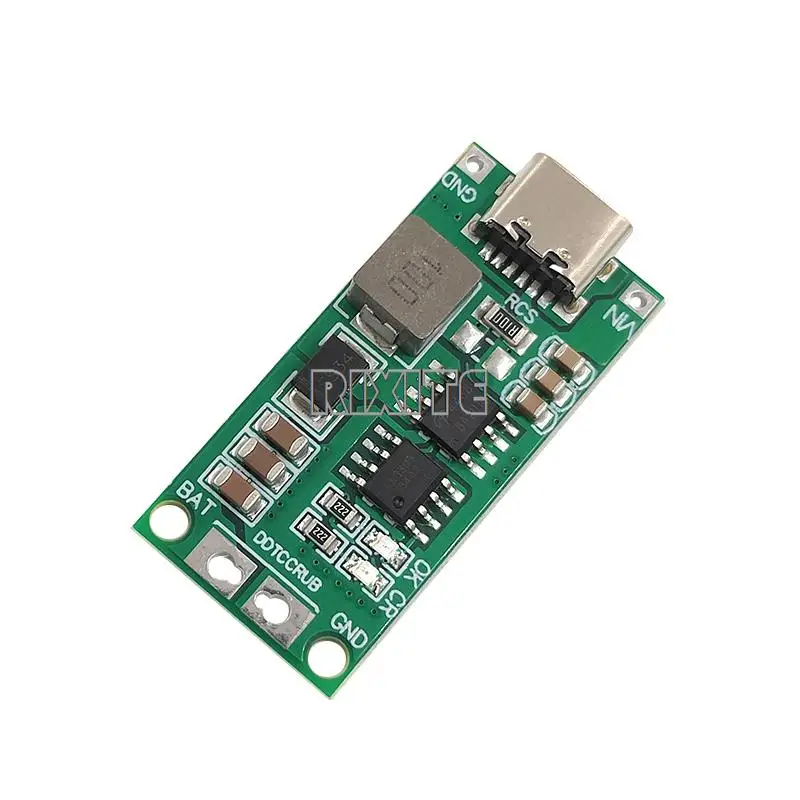

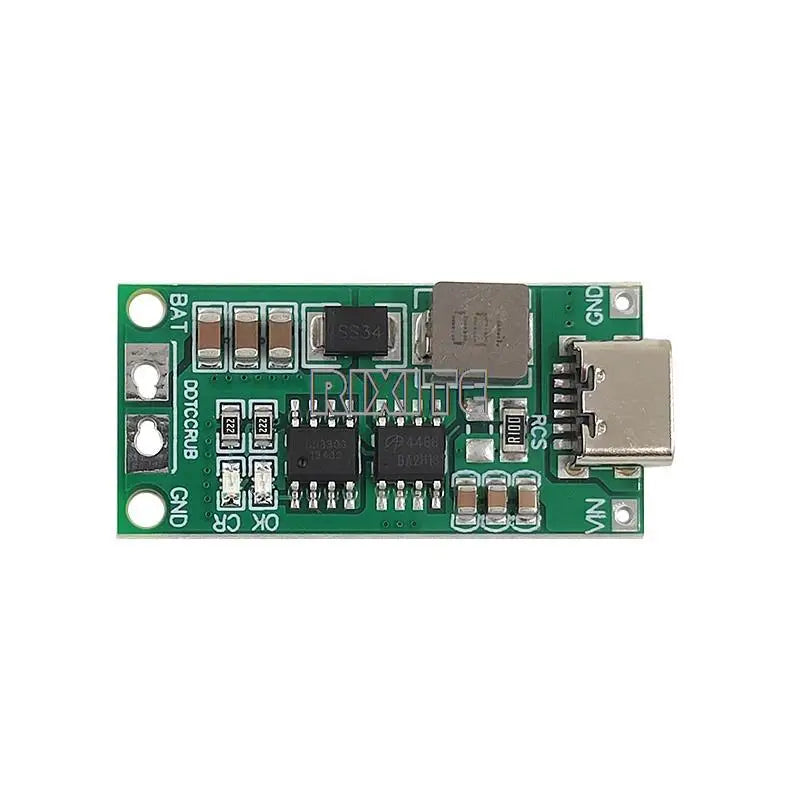

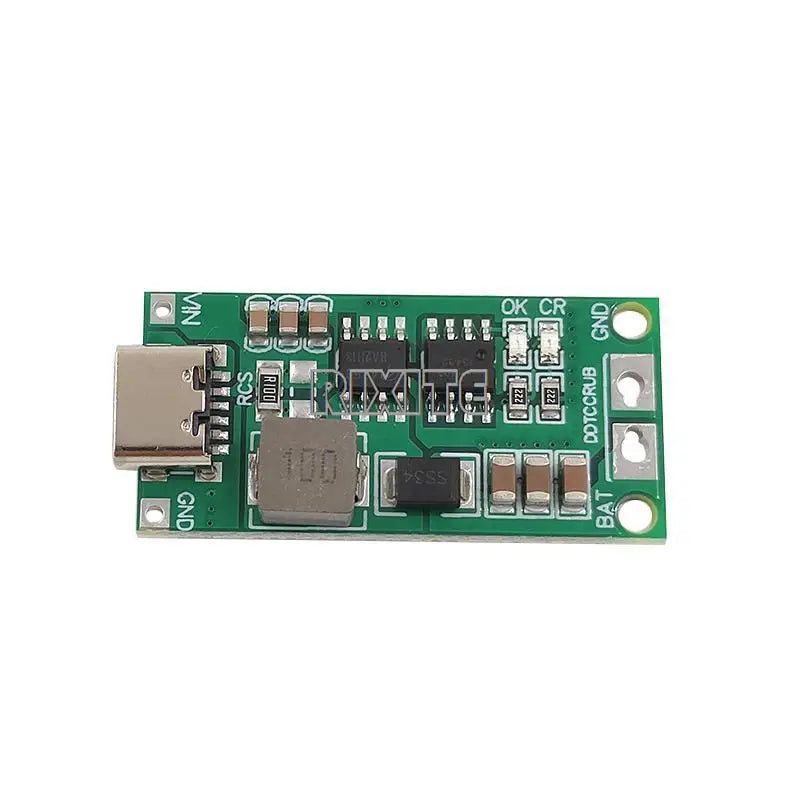

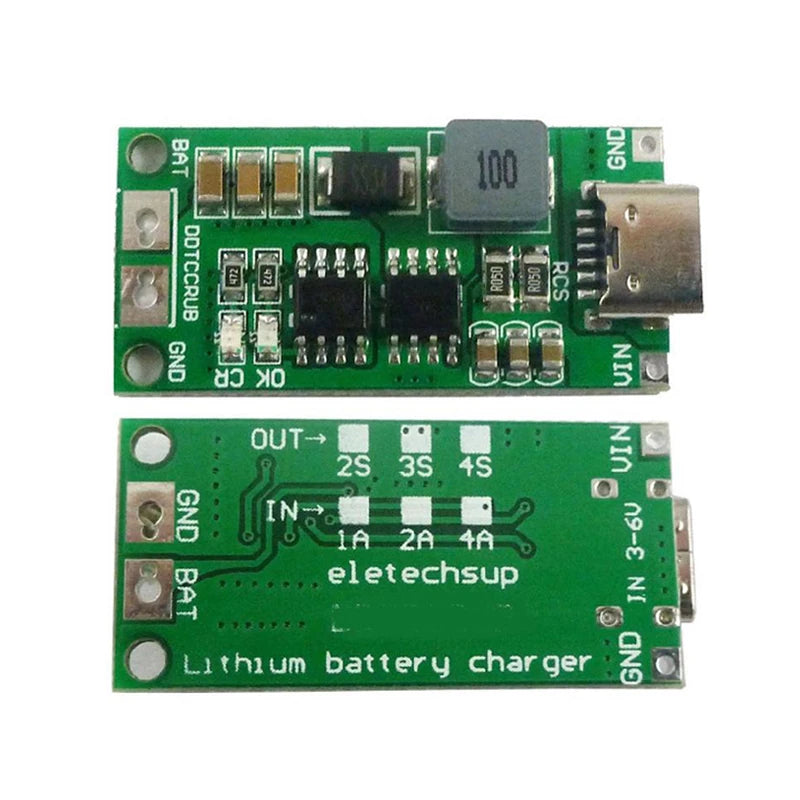

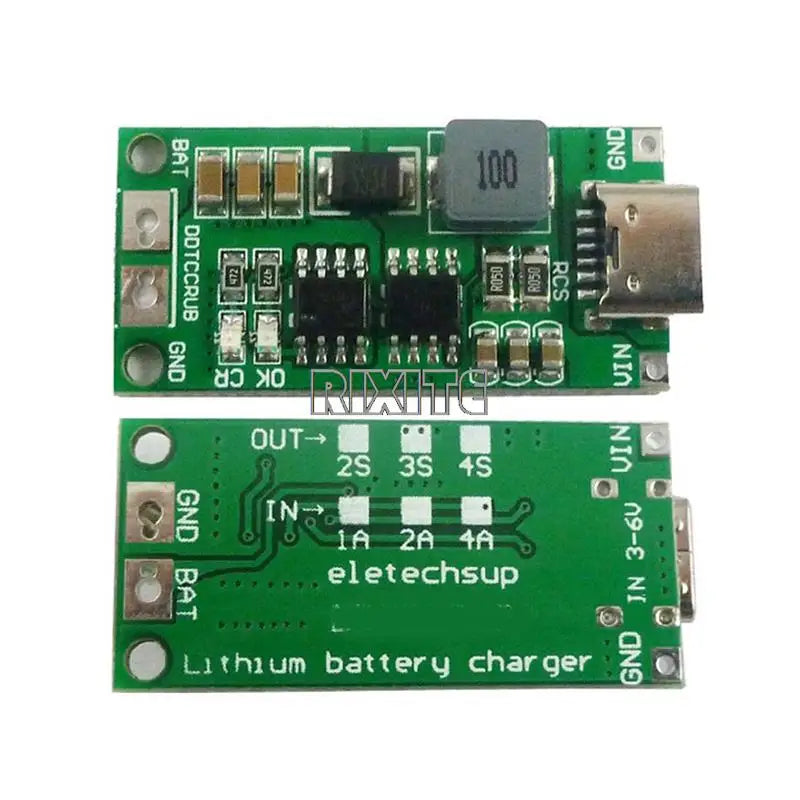

Name: Type C BMS 2S 3S 4S 1A 2A 4A 18650 Lithium Battery Charger Board USB C Step-up Boost Module For Li-Po Polymer Power Bank
Brand: Phones Icon
SKU: 14:193#Green;822:202506811#4S 1A
Price: 8.52 USD
Availability: InStock

Accessory Type: Battery Accessories

Battery Included: No

Brand Name: RIXITE

Certification: CE

Charger included: N

Choice: yes

Electronic: No

High-concerned chemical: None

Item Type: Power Supply

Model Number: Type C BMS Lithium Battery Charger Board

Origin: Mainland China

Use: others

Voltage range: USB (5-20V DC)

semi_Choice: yes

Description:

1: Diverse choices, customers can choose what they need according to different needs

2: Widely used

3: High safety performance

4: Simple and easy to understand and operate

5: Battery overvoltage protection

Parameter:

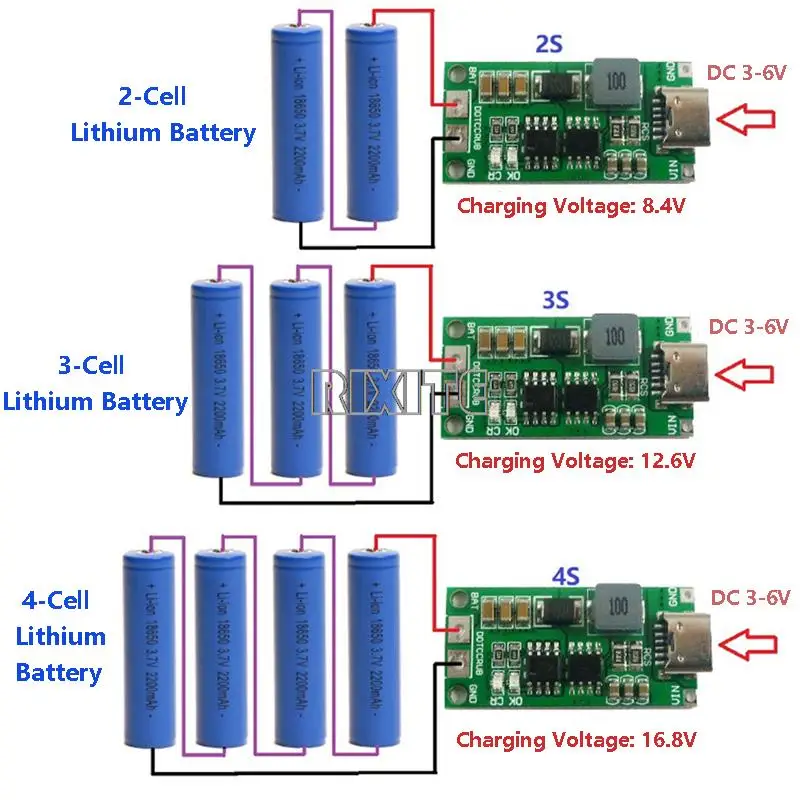

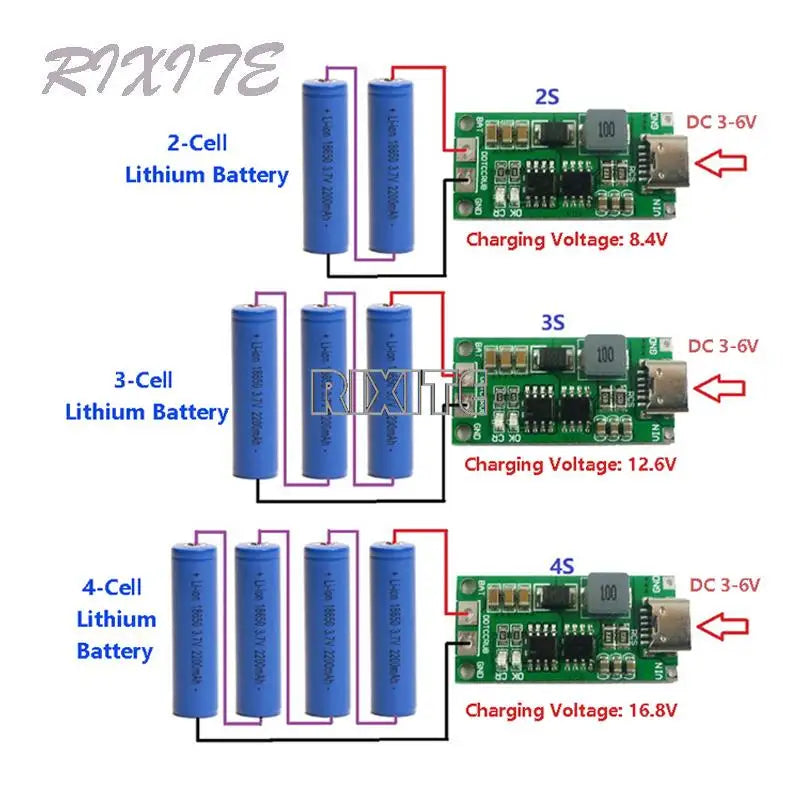

2-Cell(2S) 8.4V Version:

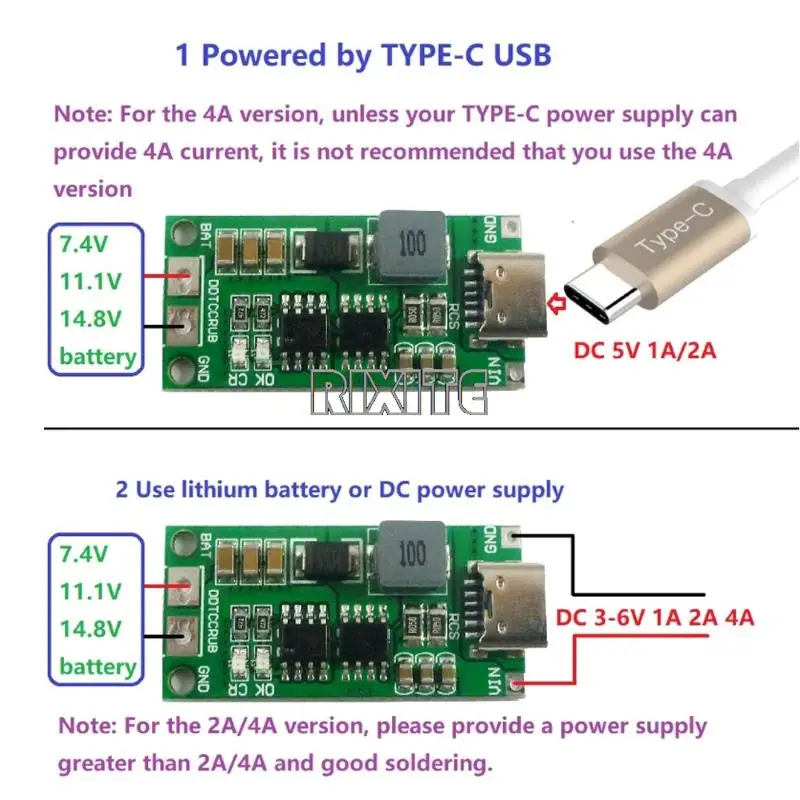

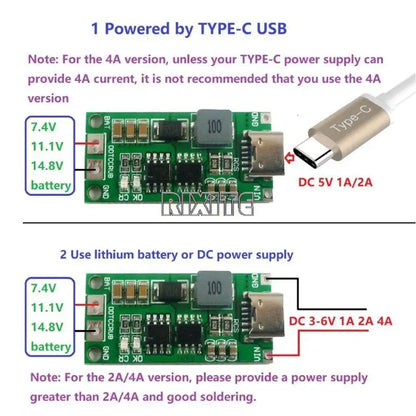

Input voltage : DC 3-6V(Recommend DC 3.7V 5V)

Input current : 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage : 8.4V
Charging current : 0.55A(1A Version);1.1A(2A Version);2.2A(4A Version)

3-Cell(3S) 12.6V Version:
Input voltage : DC 3-6V(Recommend DC 3.7V 5V)

Input current : 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage : 12.6V
Charging current : 0.37A(1A Version);0.74A(2A Version);1.48A(4A Version)

4-Cell(4S) 16.8V Version:
Input voltage : DC 3-6V(Recommend DC 3.7V 5V)

Input current : 1A(1A Version);2A(2A Version);4A(4A Version)
Charging voltage : 16.8V
Charging current : 0.28A(1A Version);0.56A(2A Version);1.12A(4A Version)

Feature:

Switching Frequency up to 1MHz

Quasi-CV mode to Compensate for the Voltage Loss on Battery Internal Resistance and Trace Resistance
Automatic Recharge
Protection for Battery Voltage Being Low than Input and Short Battery
Good adaptability to Input Supply with Limited Driving Capability
Battery Overvoltage Protection
Led indicator : ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;
Operating Ambient Temperature－40℃ to ＋85℃
Size 39mm x 18mm x 6.3mm
Weight : 5g

Applications:

PDA, MP3 Players, MP4 Players
Digital Cameras
Bluetooth Applications
Game Players
Notebook
li-on li-po Lithium Battery 18650
Mobile phone
Solar charging
Audio equipment
Portable Devices
POS , Electric Fan
TYPE-C charging equipment

Package Include:

1 x Li-ion battery charger
